UV Light Sources
High Power and High Stability UltraViolet for the 190-450nm rangeSL3 Deuterium Lamps
UltraViolet range from 190-450nm
Popular Systems: UV-VIS Absorbance, Fluorimetry, UV SpectroRadiometry, Calibration Sources
StellarNet has a variety of UV light sources available for spectroscopy applications. Ultra-violet light interacts with many types of molecules and samples and thus finds use in environmental studies, biological applications, chemical processing, and many other applications.

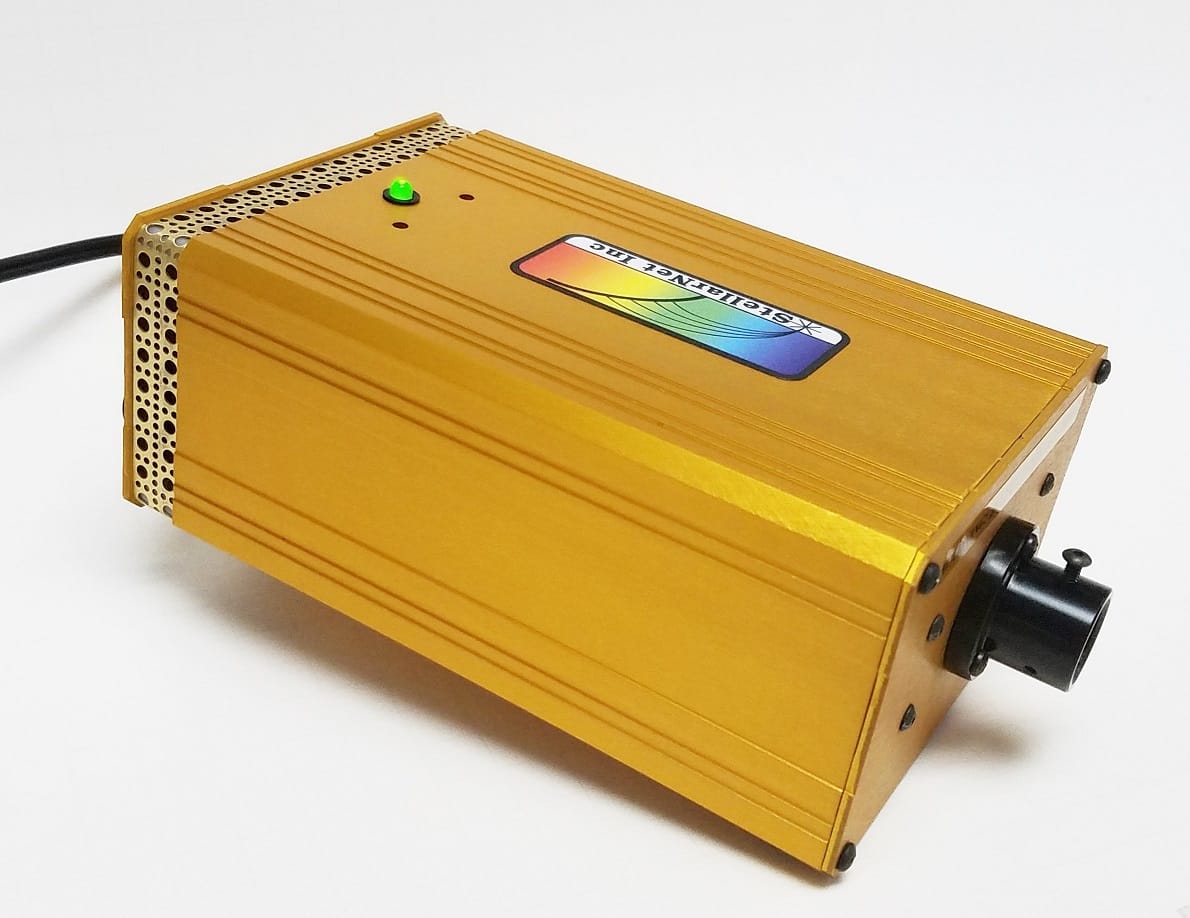

The SL3 Deuterium Light Source - emits a deep UV spectral output over the 190- 450nm range and higher. When using StellarNet BLACK-Comet concave grating spectrometers, you can perform spectroscopy applications past 550nm.
High Output Power - With over 15 Watts/m^2 the SL3 is one of the brightest compact UV light sources available. It can be used for absorbance, transmission, fluorescence, and even reflectance spectroscopy.
Long Life - 2,000 hour performance due to special air flow design and ultra quiet fan operation. Customer reports of continuous operation for over a year!
Exceptional Performance - designed for maximum stability with precision power control it is ideal for UV spectroscopy
Portability - small size allows for use in field or mobile spectroscopy applications.
Options and Upgrades
DCX Lens Option – This add-on option increases the deuterium lamp intensity 7-10x gain and is highly recommended for highly absorbing samples and reflectance measurements.
Filter Options – Integrated filter holder fits standard size 0.5 inch diameter disk filters. The U330-filter removes the deuterium spikes seen near 485nm
UV + Visible Light – The optional F400-YB fiber optic bundle cable is used to combine the SL1 tungsten halogen lamp and the SL3 to cover wavelength ranges from 190–2200nm
NIST Calibrated Option – Purchase SL3-CAL for UV Light Source with NIST traceable calibration file. Easily calibrate UV spectrometers and sensors over the 200-450nm range
Technical Specifications
| SL3 Deuterium UV Light Source | |||
| Weight: | 1.8 lbs (816.5 g) | Output from bulb: | free space or fiber |
| Power consumption: | 30 watts | Output regulation: | 0.05% |
| Spectral Range: | 190 – 450nm | Internal filter accessory: | n/a |
| Time to stabilize: | 15 min | External filter slot: | 0.5" diameter filters |
| Power output: | 15 watts /m2 | Spectral attenuation: | none |
| Bulb Color Temp: | 4000K | Connector: | SMA 905 |
